LED UV for Inkjet / Silk Screen Printing หัวแอลอีดียูวี สำหรับงานพิมพ์ Inkjet และ Silk Screen
รุ่น inkc1080H2

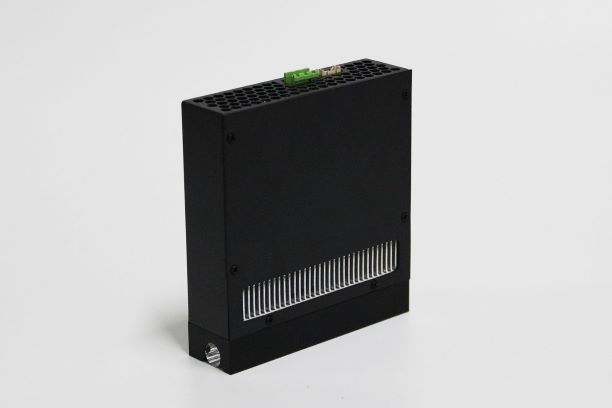

Model:inkc10120H2
Irradiation Size :10-120mm
Outer Size : W-L-H:33-122-130mm
Outer Size : W-L-H:33-82-130mm
UV Intensity :8000mw/cm^2
Test distance:10mm
Wavelength:Choice 365/385/395/405nm
Cooling:Fan
Drive mode:48VDC constant voltage drive
Model:inkc15120H2
Irradiation Size :15-120mm
Outer Size : W-L-H:44-122-130mm
UV Intensity :12000mw/cm^2 Test distance:10mmUV Intensity :8000mw/cm^2
Test distance:10mm
Wavelength:Choice 365/385/395/405nm
Cooling:Fan
Drive mode:48VDC constant voltage drive
Model:inkc15160H2
Irradiation
Size :15-160mm
Outer
Size : W-L-H:44-162-130mm
UV
Intensity :9000mw/cm^2
Test
distance:10mm
Wavelength:Choice 365/385/395/405nm
Cooling:Fan
Drive
mode:48VDC constant voltage drive
LED UV for Flexolabel and Offset Printing แอลอีดีในงานพิมพ์ เฟล๊กโซ และ พิมพ์ออฟเซ็ท

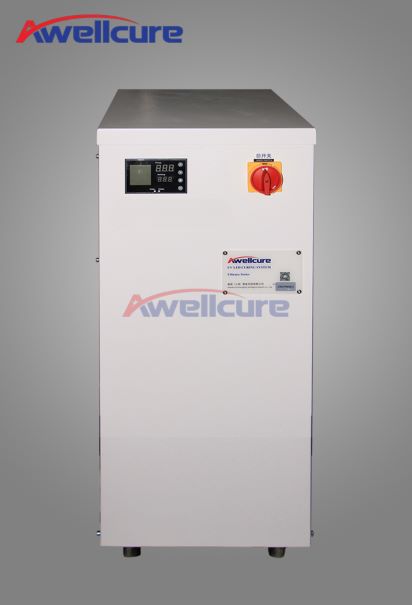

Controller for Flexolabel and Offset Printing LED Lamp Head
1.
สามารถขับหัวยูวี แอลอีดี ได้สูงถึง 16 หัว โดยเลือกได้ว่าต้องการคอนโทรล 6, 8,16 หัว
2.
หน้าจอแสดงอุณหภูมิ และสถานะของการทำงานของ LED
UV สถานะการแจ้งเตือนต่างๆ
3.
สามารถปรับความเข้มแสงยูวีได้ตามจังหวะสปีดของการวิ่งงาน

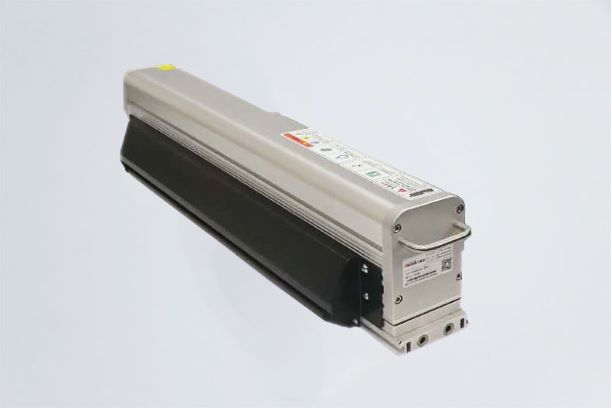

Model: FLexoLabel /Offset LED HEAD
Wavelength:385/395nm
UV Intensity:25w/cm^2 @eit/ieitek 0mm
Light width:20mm
Luminous length:200~2300mm
Model: FLexo Label / Offset LED HEAD
Wavelength: 365/385/395nm
UV Intensity: 12w/cm^2 @eit/ieitek 0mm
Light width: 20~60mm
Luminous length: 200~2300mm
Model: FLexoLabel / Offset LED HEAD
Wavelength:365/385/395nm
UV Intensity:16w/cm^2
@eit/ieitek 0mm
Light width:20~60mm
Luminous length:200~2300mm
