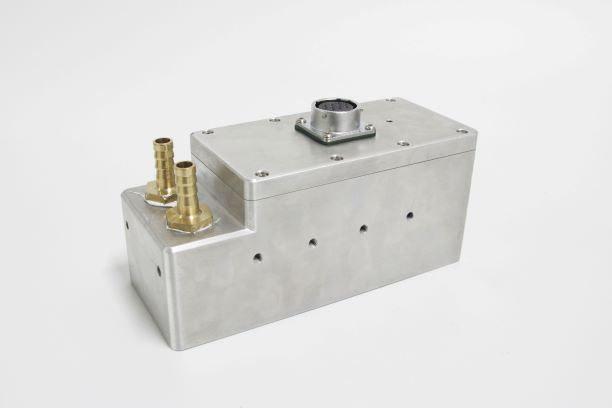

Water Cool LED UV Head ,ระบบ ยูวี แอลอีดี ระบายความร้อนด้วยน้ำ

H1 = 0-6 W/cm2      H2 = 6-12W/cm2     H3 = 12-20W/cm2   H4 = 20-30W/cm2

AW2050H1 AW2050H2 AW2050H4

Model：AW2050H1 Model：AW2050H1 Model：AW2050H4

Irradiation Size ：20-50mm Irradiation Size ：20-50mm Irradiation Size ：20-50mm

Outer Size ： W-L-H：280-100-50mm Outer Size ： W-L-H：280-100-50mm Outer Size ： W-L-H：280-100-50mm

UV Intensity ：5000mw/cm^2 UV Intensity ： 8000~10000mw/cm^2 UV Intensity ：25000mw/cm^2

Test distance：0mm Test distance：0mm Test distance：0mm

Wavelength：Choice 385/395nm Wavelength：Choice 385/395nm Wavelength：Choice 385/395nm

Cooling：Water cooled Cooling：Water cooled Cooling：Water cooled

Drive mode：With awellcure controller  Drive mode：With awellcure controller  Drive mode：With awellcure controller

AW20150H1 AW20250H2 AW20150H4

Model：AW20150H1 Model：AW20250H2 Model：AW20150H1

Irradiation Size ：20-150mm Irradiation Size ：20-250mm Irradiation Size ：20-150mm

Outer Size ： W-L-H：80-200-50mm Outer Size ： W-L-H：80-300-50mm Outer Size ： W-L-H：80-200-50mm

UV Intensity ：5000mw/cm^2 UV Intensity ：8000~10000mw/cm^2 UV Intensity ：25000mw/cm^2

Test distance：0mm Test distance：0mm Test distance：0mm

Wavelength：Choice 385/395nm Wavelength：Choice 385/395nm Wavelength：Choice 385/395nm

Cooling：Water cooled Cooling：Water cooled Cooling：Water cooled

Drive mode：With awellcure controller  Drive mode：With awellcure controller  Drive mode：With awellcure controller

AW20200H1

Model: AW20200H1                                                                           Size： W-L-H：80-250-50mm

UV Intensity ：5000mw/cm^2

Test distance：0mm

Wavelength：Choice 385/395nm

Cooling：Water cooled

Drive mode：With awellcure controller



AW20300H1

Model：AW20300H1

Irradiation Size ：20-300mm

Outer Size ： W-L-H：80-350-50mm

UV Intensity ：5000mw/cm^2

Test distance：0mm

Wavelength：Choice 385/395nm

Cooling：Water cooled

Drive mode：With awellcure controller
